Performance

HIDIC EH150-EHV series Ethernet communication

Add array OPCItems as Advise from a OPC Client.
It is measured reading time from added OPCItems. Communication performance is defined as average time of ten times measurement.
This time means to read the value of a continuous area of the device.

PC specification

* You can scroll this table sideways.

OS Windows 7 Professional 32bit OS
CPU Intel(R) Core(TM) i5 CPU 3470 @3.2GHz
Memory 4.00GB
OPC Server DxpSERVER OPC Server Ver5.2.0.1
OPC Client OPCClient sample VcSampleOpc(C++)
Cable 100BASE-TX cross cable connecting directly

OPC Server setting

* You can scroll this table sideways.

Protocol Timer Tick 10msec
Timer Tick for Async Update Mode 10msec
Multi Access Mode Enable
Multi Access for Snyc Asnyc Disabled
Async Update Mode Disabled

PLC setting

* You can scroll this table sideways.

CPU EH-CPU128
Register WR0-WR32767
Max scan time 2msec

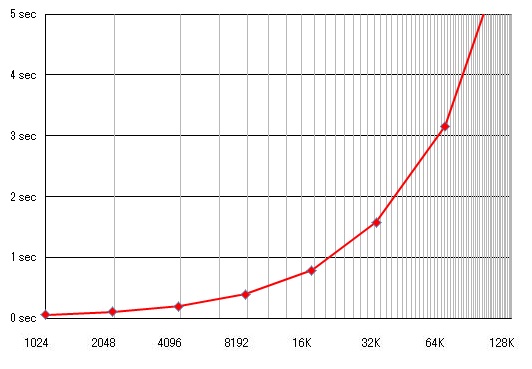

Communication Performance

(sec)

* You can scroll this table sideways.

  1024 2048 4096 8192 16K 32K 64K 128K
Average 0.051 0.100 0.197 0.393 0.786 1.574 3.152 6.385
Max 0.054 0.102 0.205 0.399 0.796 1.587 3.164 6.711
Min 0.049 0.096 0.192 0.385 0.775 1.565 3.140 6.325

Results

In case of continuous internal registers(WR) , it is possible to get max 20,000 points per sec.

Comment

*Graph displays average time of ten times measurement.(1point = 1word)
*The result only means our examination, it doesn't guarantee performance.
[Sep 2014]

HIDIC EH150-EH series Ethernet communication

Add array OPCItems as Advise from a OPC Client.
It is measured reading time from added OPCItems. Communication performance is defined as average time of ten times measurement.
This time means to read the value of a continuous area of the device.

PC specification

* You can scroll this table sideways.

OS Windows 7 Professional 32bit OS
CPU Intel(R) Core(TM) i7 CPU 860 @2.80GHz
Memory 3.00GB
OPC Server DxpSERVER OPC Server Ver5.0.1.1
OPC Client OPCClient sample VcSampleOpc(C++)
Cable 100BASE-TX cross cable connecting directly

OPC Server setting

* You can scroll this table sideways.

Protocol Timer Tick 10msec
Timer Tick for Async Update Mode 10msec
Multi Access Mode Enable
Multi Access for Snyc Asnyc Disabled
Async Update Mode Disabled

PLC setting

* You can scroll this table sideways.

CPU EH-CPU448
Communication unit EH-ETH
Register WR0-WR3FFF
Max scan time 48msec

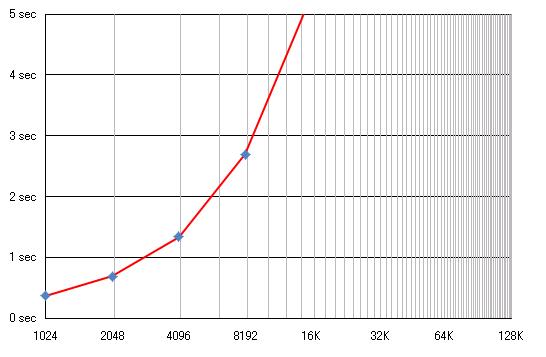

Communication Performance

(sec)

* You can scroll this table sideways.

  1024 2048 4096 8192 16K 32K 64K 128K
Average 0.365 0.686 1.333 2.694 5.352 10.474 20.917 41.932
Max 0.397 0.742 1.481 2.822 5.597 11.220 21.250 42.621
Min 0.295 0.640 1.237 2.571 5.141 9.860 20.403 40.889

Results

In case of continuous internal registers(WR) , it is possible to get max 3,000 points per sec.

Comment

*Graph displays average time of ten times measurement.(1point = 1word)
*In case of 32K points access , Read 32K points by using 2 devices.( 16K point per 1 device).
*The result only means our examination, it doesn't guarantee performance.

[Aug 2012]

Interface performance

Results of measurement of each interface(eg.sync /async /datachange event etc).
(detail)
