Performance

TOYOPUC-PC10 series Ethernet connection

Add array OPCItems as Advise from a OPC Client.
It is measured reading time from added OPCItems. Communication performance is defined as average time of ten times measurement.
This time means to read the value of a continuous area of the device.

PC specification

* You can scroll this table sideways.

OS Windows 7 Professional 32bit OS
CPU Intel(R) Core(TM) i7 CPU 860 @2.80GHz
Memory 3.00GB
OPC Server DxpSERVER OPC Server Ver5.0.1.1
OPC Client OPCClient sample VcSampleOpc(C++)
Cable 100BASE-TX cross cable connecting directly

OPC Server setting

* You can scroll this table sideways.

Protocol Timer Tick 10msec
Timer Tick for Async Update Mode 10msec
Multi Access Mode Enable
Multi Access for Snyc Asnyc Disabled
Async Update Mode Disabled

PLC setting

* You can scroll this table sideways.

CPU PC10G-CPU(Built-in Ethernet)
Register D0-D1FFF
Max scan time 3msec

Communication Performance

(sec)

* You can scroll this table sideways.

  1024 2048 4096 8192 16K 32K 64K 128K
Average 0.044 0.076 0.142 0.268 0.499 1.146 2.675 5.166
Max 0.046 0.090 0.167 0.296 0.591 1.394 3.110 6.504
Min 0.042 0.071 0.132 0.262 0.451 1.044 2.385 3.849

Results

In case of continuous Data register(D), it is possible to get max 20,000 points per sec.

Comment

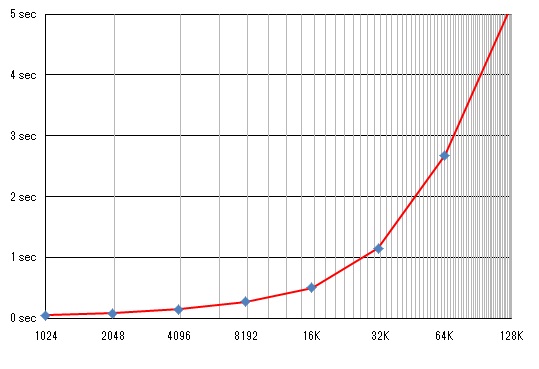

*Graph displays average time of fifty times measurement.(1point = 1word)
*In case of 32K points access , Read 32K points by using 2 devices.( 16K point per 1 device).
*The result only means our examination, it doesn't guarantee performance.
[Aug 2012]

Interface performance

Results of measurement of each interface(eg.sync /async /datachange event etc).(detail)
