PLC Setting
TOYOPUC-PC10 series Ethernet configuration
Configure Ethernet paramters such as IP address, Port number etc. by Parameter window
Network environment
This sample assume the following cases.
Host IP address | 192.168.0.1 |
---|---|
Host Port number | 0 |
PLC IP address | 192.168.0.4 |
PLC Port number | 1025 |
Link parameter
Explanation

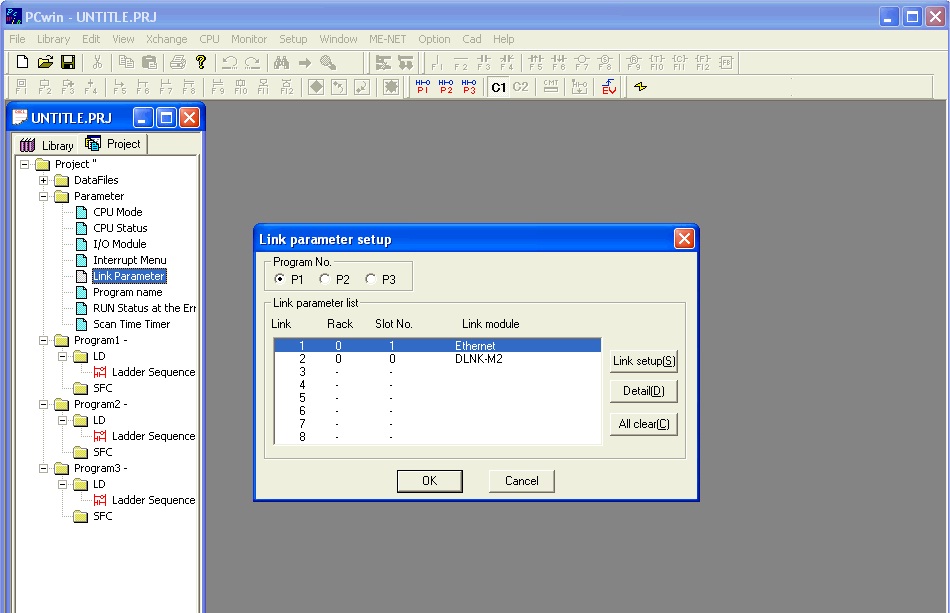

- Open "Link parameter" of PCwin
Configuration Link module
Explanation
- Specify "Rack no" and "Slot No." of Ethernet module by Link pamraeter setup window.
Configuration Ethernet

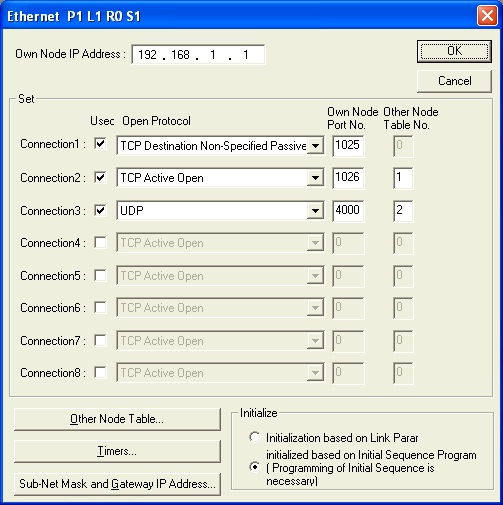

Specify "Own node IP address" and connections parameters in the detail setup screen.
Explanation
- Open "Ethernet setting" screen, and set IP address to "192.168.0.4" as own node.
- set the port number of connection 1 to "1025".
- You need to set the "Other Node Table No" that specified IP adress and Port No , if you'd select "Protocol Open" excluding "TCP Destination Non-Specified Passive".
Configuration Node table
Explanation

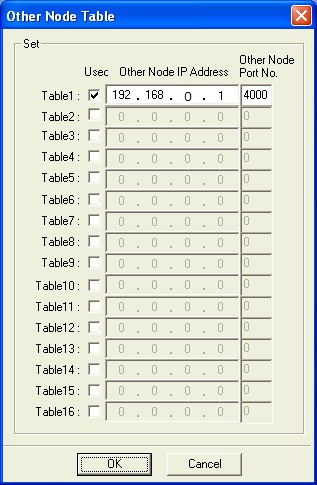

- Configure IP address and Port number of other node(Host PC).
