PLC Setting

FA-M3(R) series Ethernet setting

Ethernet parameter(eg. IP address and port number etc.) are made using a dip switch in the Ethernet module.

IP address and port number

This sample assume the following cases.

* You can scroll this table sideways.

Host IP address 192.168.1.1
Host port number 0
FA-M3 IP address 192.168.1.2
FA-M3 Port number 12289

IP address and port number

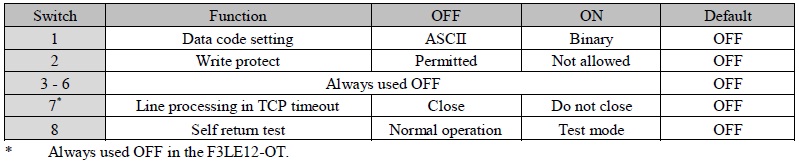

Condition switch

Configuration of data code and writable etc.
Left Fig. shows binary communication.



IP address setting switch

One digit consists of an upper and lower rotary switch, and IP address is set by the hexadecimal number with eight rotary switches in total. Default value is '0.0.0.0'.
Left Fig. shows 'C0.A8.01.02' in hexadecimal. It means '192.168.1.2' in decimal number.
