PLC Settings

Rockwell AB ControlLogix series Ethernet configuration

ControlLogix settings can be configured on Studio 5000.

Network environment

This sample provides a case in which a PC with Studio 5000 installed is connected via USB to a ControlLogix 5570 CPU unit. The case also assumes the following settings:

Rockwell IP address 192.168.19.132
Rockwell model 1756-EN2TR

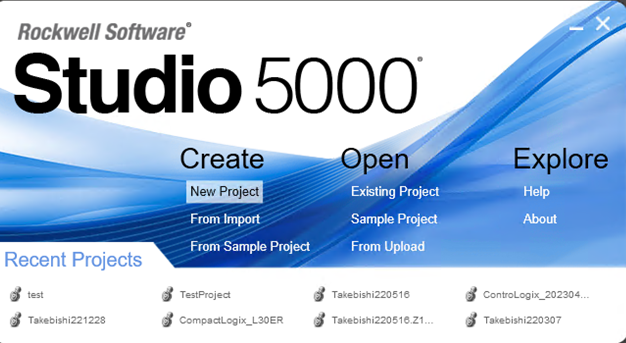

  • Before following these instructions, download Studio 5000 and create a new project.

Communication interface setting

Follow these steps to connect the controller to the Studio 5000 project.

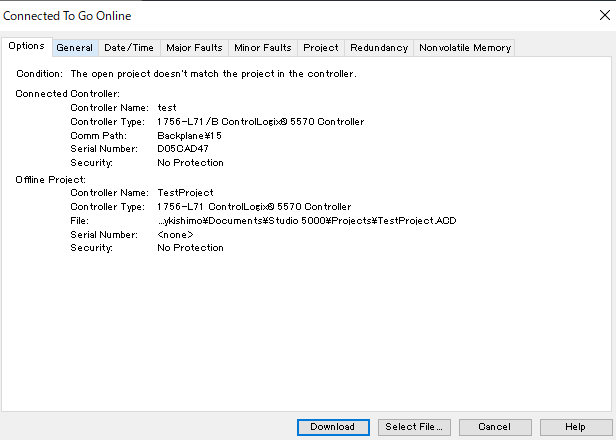

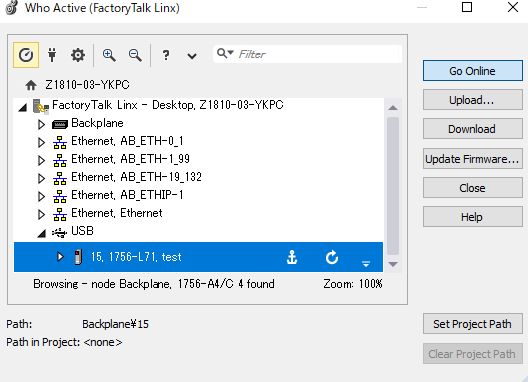

  • Click Communications > Who Active to connect Studio 5000 to the desired controller.



  • Click Download to connect the communication module.

Module selection

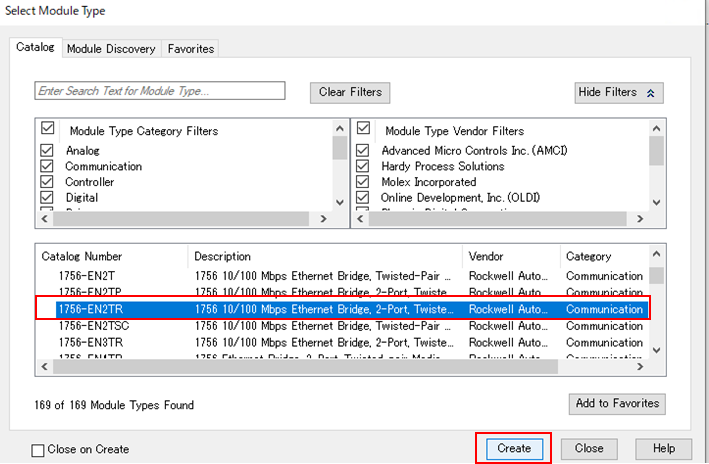

  • In Studio5000, right-click I/O Configuration and click New Module. Select the correct model and click Create.

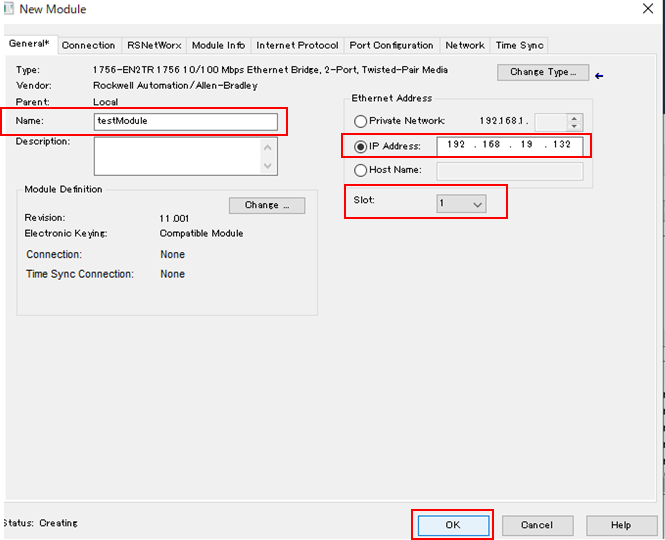

Module settings

Configure the module settings as follows:

  • Input the Name, IP Address, and Slot to match the connection conditions.

Tag settings

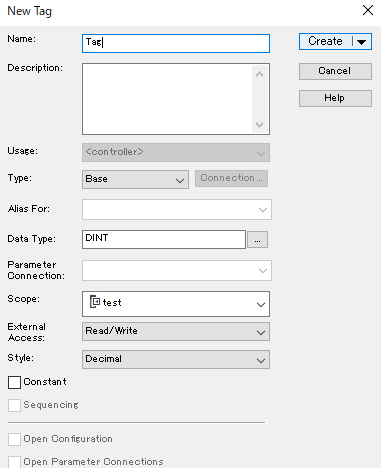

Right-click Controller Tags > New Tag... to create a new tag.

  • Set the Name and Data Type according to the data to be collected, and click Create.

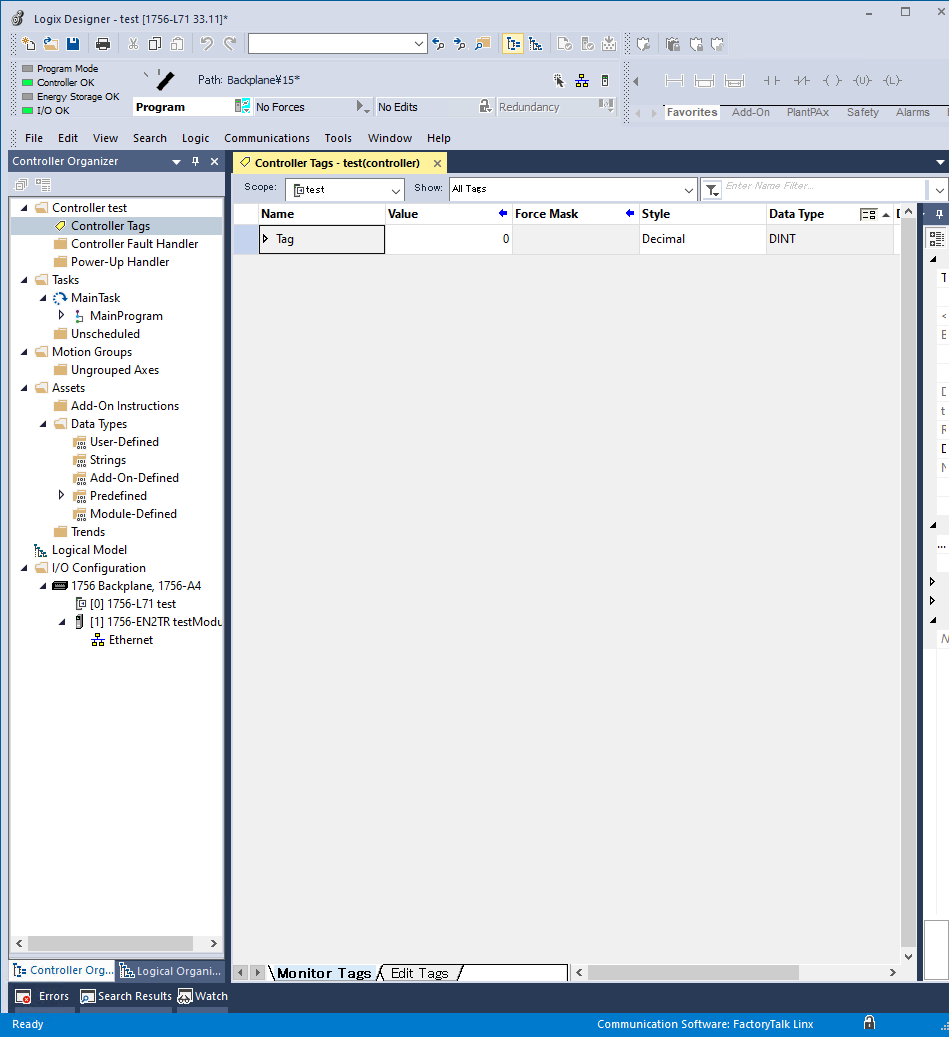

  • Created tags can be monitored from the Controller Tags view.

DeviceXPlorer OPC Server Configuration

Communication with DeviceXPlorer OPC Server can be established in 3 easy steps.

DxpServer Ver.7

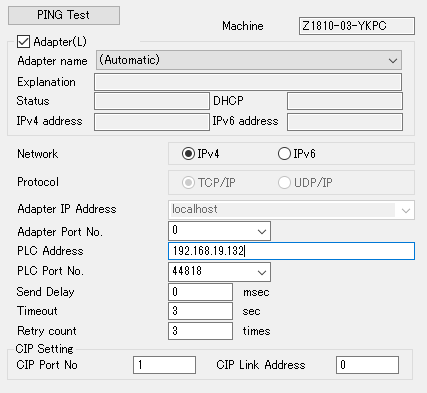

1. Port settings

  • Configure the PLC Address, PLC Port No. and CIP Port No to match the Rockwell communication settings.
  • The CIP Port No corresponds to Slot in Studio 5000.

2. Device settings

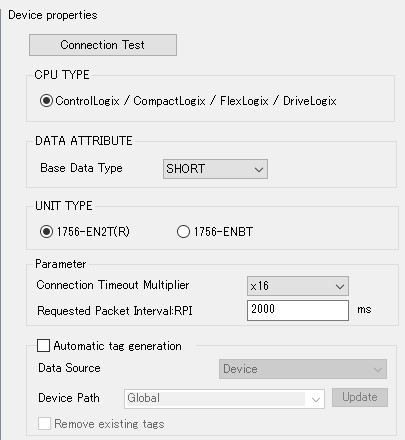

  • Select the Unit Type which matches the Rockwell PLC and click Connection Test to confirm that the connection is successful.
  • Automatic tag generation can also be configured from this window.



3. Tag settings

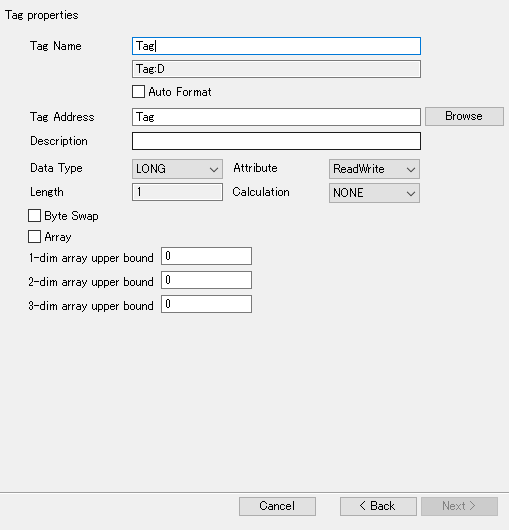

  • Specify the Tag Name and Data Type which correspond to the Studio 5000 tag settings.

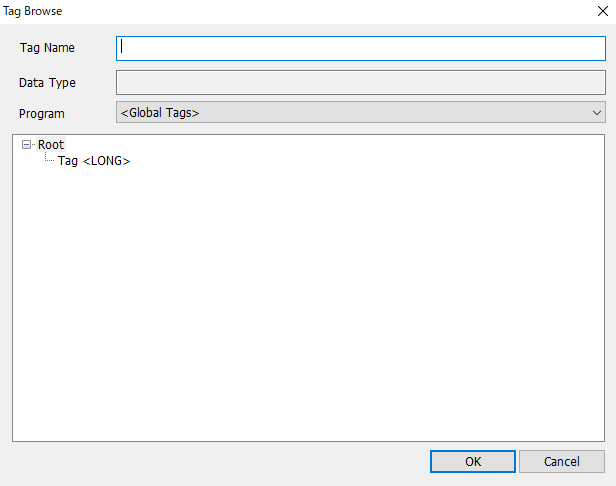

  • Click Browse to select the desired tag from the list of tags.

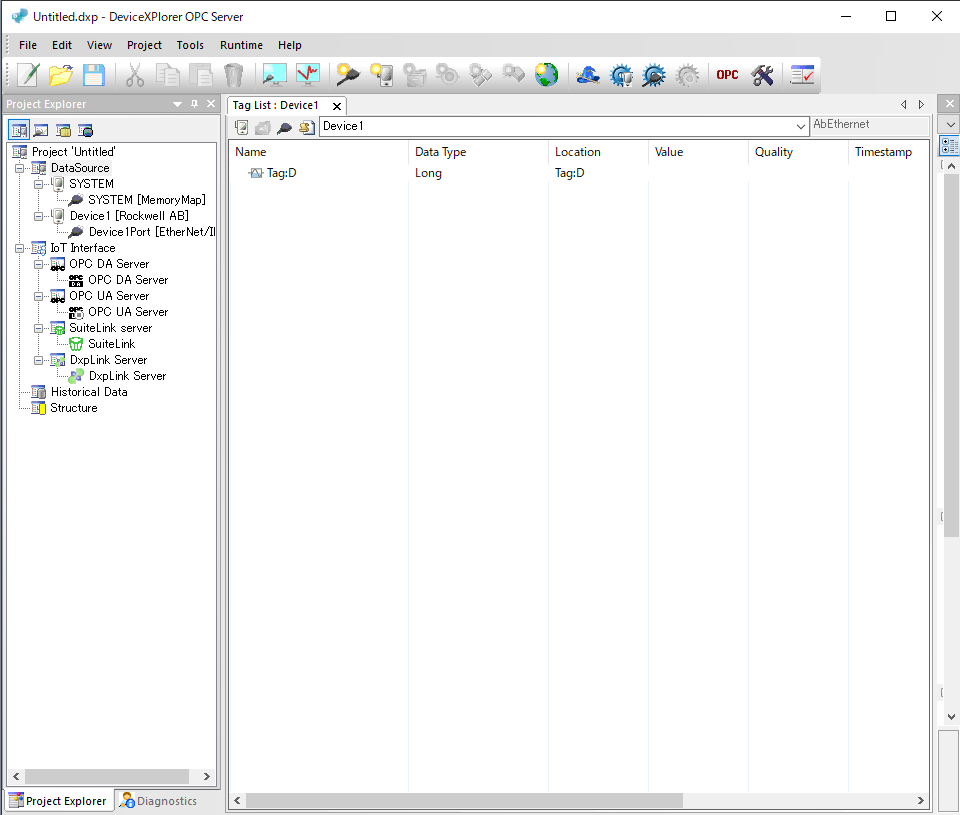

DeviceXPlorer tags can be monitored from the Tag List tab.

The corresponding Data Types for AB Logix and DeviceXPlorer are as follows:

Logix data type DeviceXPlorer data type
BOOL BOOL
SINT BYTE
INT SHORT
DINT LONG
LINT LONGLONG
FLOAT
FLOAT
DATE Not supported
STRING STRING
