Tag Data Bridge between different devices

2023.04.14

Bridge Function

Bridge function is one solution for this request.

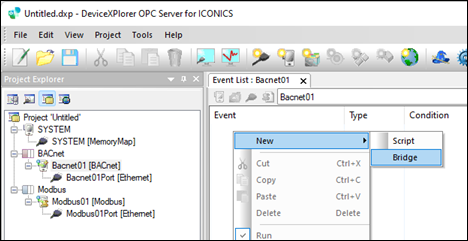

You can create “Bridge” settings on the event list view which device setting has.

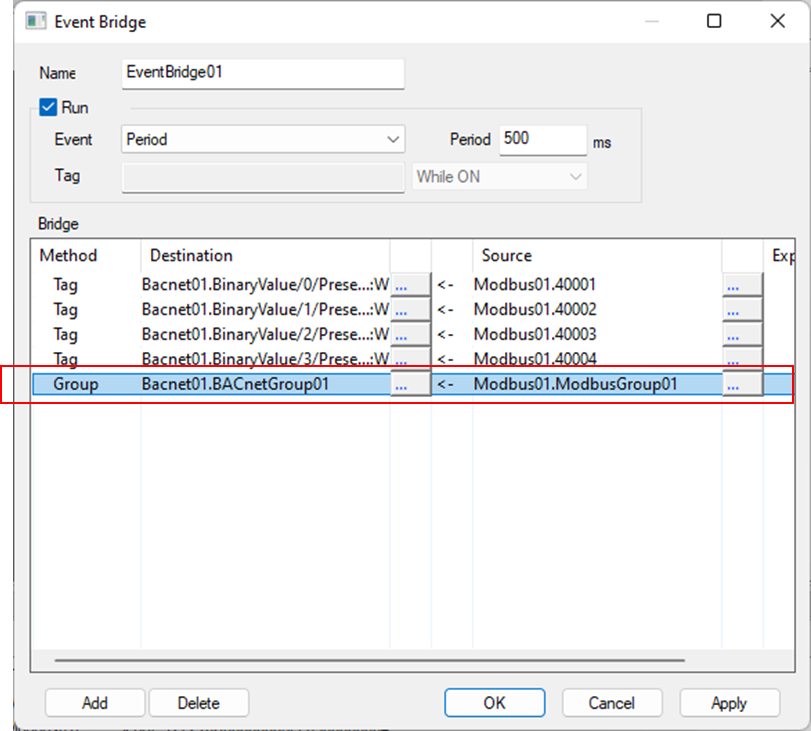

One “Bridge” setting can include data bridge setting for 32 tags.
If tag names are the same between two devices or groups, you can specify group name and it allows you to data copy in batches by group.

Multipe bridge settings can be created as you like.

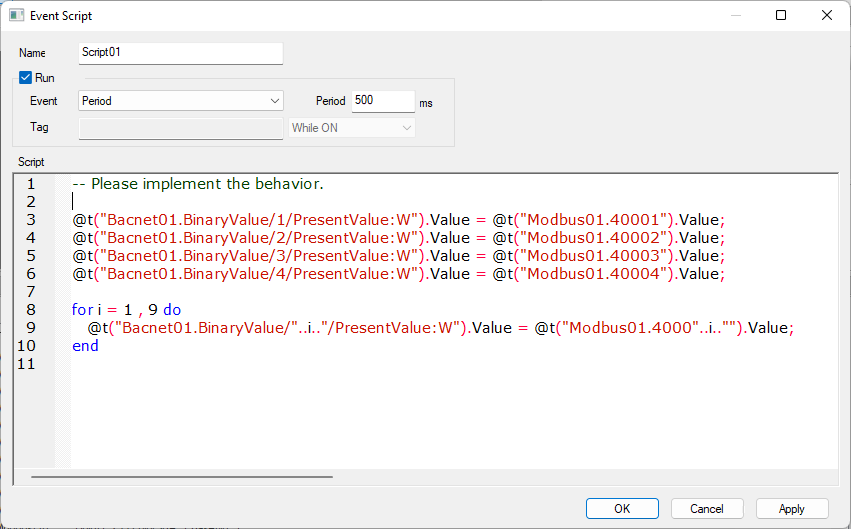

Script Function

Scripting funciton is another solution for this request.
You can create “Script” settings on the event list view which device setting has.

In a script, you can write a script for copying tag values of more than 32 tags. You can browse the tag list by “Ctrl + B” in the script editor.

Note

In the Ver.6 series, only one Script or Bridge setting can be created and the cycle interval is fixed at 1,000 ms in the "Standard" and "Advanced" editions. If you'd like to use Script or Bridge settings, please purchase the "Enterprise" edition.

In Ver.7 series, there are no restrictions on Script and Bridge settings in all editions.
